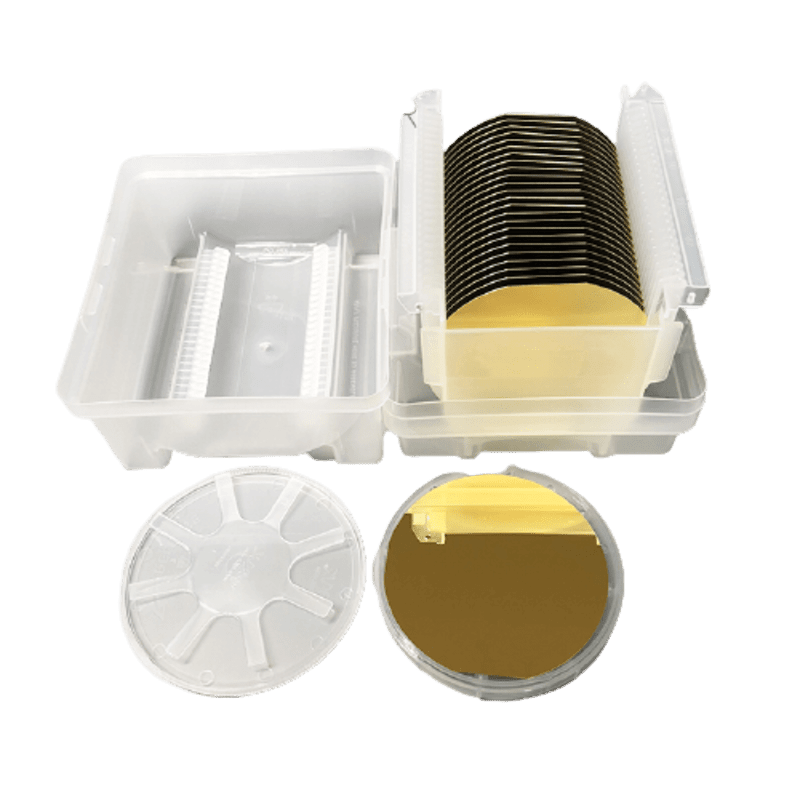

Silicon wafer 4inch 6inch Copper Layer Semiconductor Substrate in protective packaging with accessories.

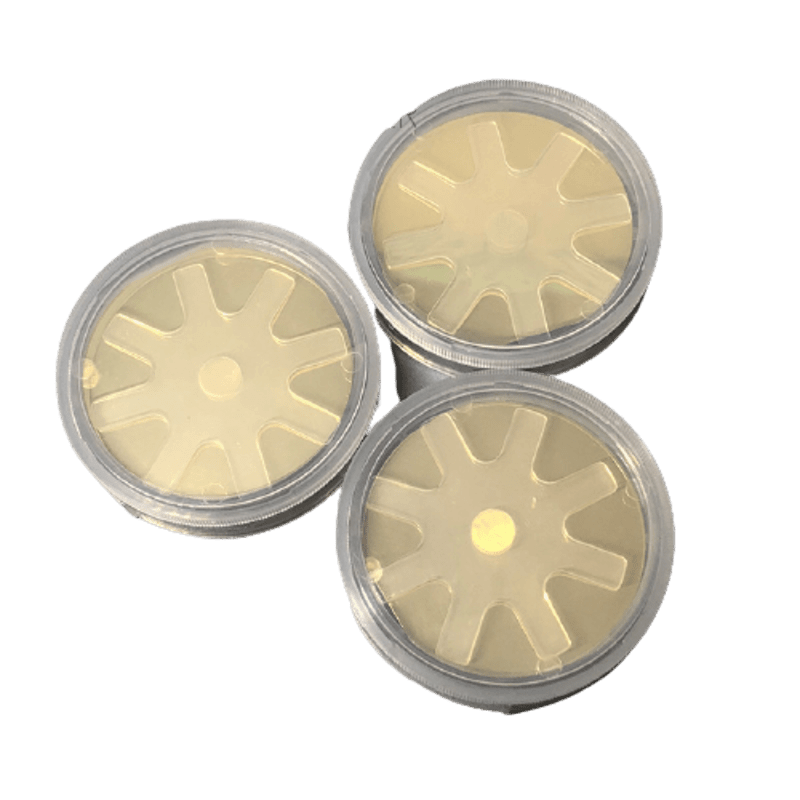

Silicon wafer 4inch 6inch Copper Layer Semiconductor Substrate in transparent containers.

SOKA TECHNOLOGY

Silicon wafer 4inch N Type(100) <0.02Ω Gold Layer 100nm Semiconductor Substrate

$205.00
Specification:N-Type(100) 500um Gold Layer 100nm
Quantity:1 Piece
Quantity:
♦️ High-quality silicon wafer for Research and Experiment.
♦️ Provide small quantities, special specifications products, and customized services.
♦️Global shipping, secure payment, large inventory.
♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.
Silicon Wafer Specification:
  • Size: 4inch;
  • Method: CZ;
  • Type: N;
  • Dopant: P;
  • Orientation:100;
  • Resistivity: <0.02Ω;
  • Thickness: 500um±25;
  • TTV＜10um ;
  • Surface: polished;
  • Backside: etched;
  • Gold film: 100nm (cr30nm;Au 100nm);
  • Packing: silicon wafer case;
