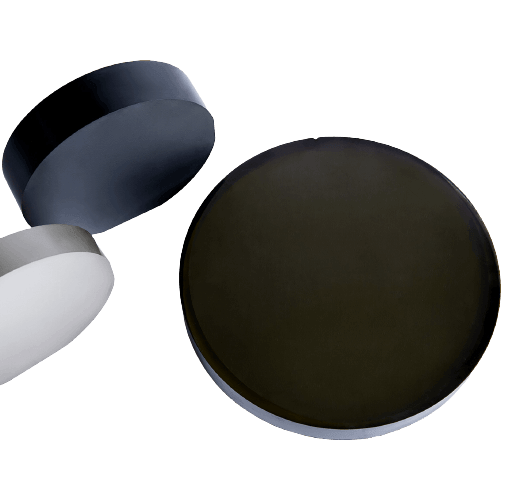

Silicon Carbide SiC Ingot 8inch N Type Production / Dummy Grade

♦️High-quality SiC ingot for Research and Experiment.

♦️Provide small quantities, special specifications products, and customized services.

♦️Global shipping, secure payment, large inventory.

♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.

SiC Ingot Specification:

• Dummy Grade
• Size: 8inch;
• Diameter: 200.25 mm ±0.25;
• Thickness: >10mm;
• Surface Orientation: 4°toward<11-20>±0.2°;
• Notch orientation: <1-100>±5°;
• Notch Depth: 1-1.5mm；
• Resistivity: 0.015~0.028;
• Micropipe: ≤50;
• BPD: None;
• TSD;None;
• Polytype areas：≤30%；
• Edge indents: ≤5,≤2mm width and depth;
• Edge Cracks:≤5,≤3mm/ea;
• Packing: Wafer case;
