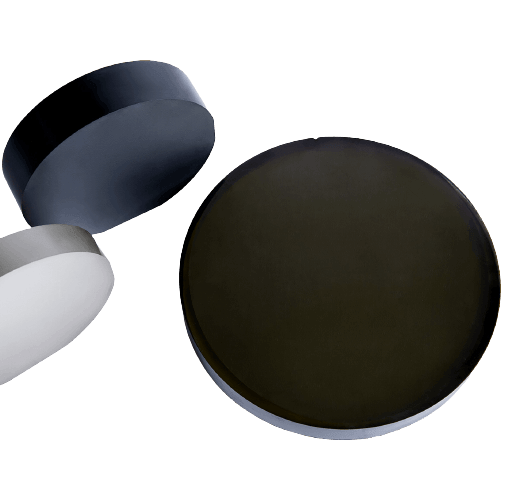

Silicon Carbide SiC Ingot 6inch N Type Production / Dummy Grade

♦️High-quality SiC ingot for Research and Experiment.

♦️Provide small quantities, special specifications products, and customized services.

♦️Global shipping, secure payment, large inventory.

♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.

SiC Ingot Specification:

• Grade: Production;
• Size: 6inch;
• Diameter: 150.25mm ±0.25;
• Thickness: >10mm;
• Surface Orientation:4°toward<11-20>±0.2°;
• Primary flat orientation: <1-100>±5°;
• Primary flat length: 47.5mm±1.5；
• Resistivity: 0.015~0.028Ω;
• Micropipe: ≤0.5;
• BPD: ≤2000;
• TSD: ≤500;
• Polytype areas： None；
• Edge indents : ≤3,≤1mm width and depth;
• Edge Cracks: ≤3,≤1mm/ea;
• Packing:Wafer case;

• Grade: Dummy;
• Size: 6inch;
• Diameter: 150.25mm ±0.25;
• Thickness: >10mm;
• Surface Orientation:4°toward<11-20>±0.2°;
• Primary flat orientation:<1-100>±5°;
• Primary flat length:47.5mm±1.5；
• Resistivity:0.015~0.028Ω;
• Micropipe: ≤10;
• BPD: None;
• TSD;None;
• Polytype areas：≤ 5%；
• Edge indents : ≤5,≤2mm width and depth;
• Edge Cracks: ≤5,≤3mm/ea;
• Packing: Wafer case;
