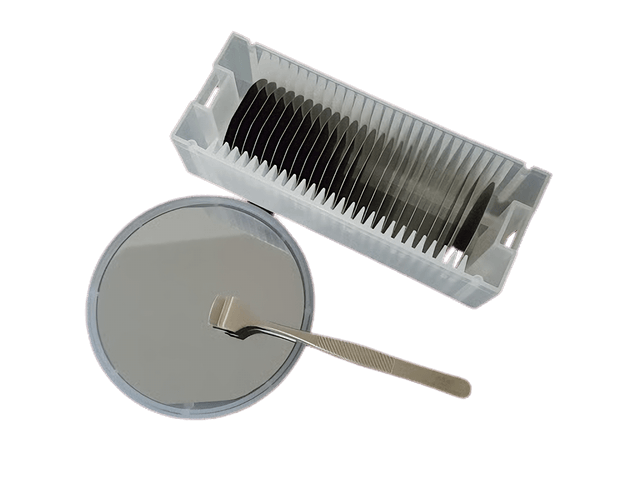

Sapphire substrate wafer in a packaging container with a tweezer, showcasing high purity LED optics for research.

SOKA TECHNOLOGY

Sapphire Wafer 4inch M/A Plane High Purity LED Optics Single Side Polished Substrate

$1,092.00
Specification:C Plane [0001] to M (1-100) 1°
Quantity:25 Pieces
Quantity:
♦️High-quality Sapphire wafer for Research and Experiment.
♦️Provide small quantities, special specifications products, and customized services
♦️Production time is 3-4 weeks. Please contact us for small quantities.
♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.
Sapphire Wafer  Specification:
  • Size: 4inch ;
  • Method: Kyropoulos ;
  • Material: Mono-crystalline Al2O3(＞99.99%）;
  • Diameter: 100 ± 0.5mm;
  • Thickness: 650um ± 25;
  • Orientation: C Plane [0001] to M(1-100) 0.2°±0.1° ;
  • OF: 30mm ± 1;
  • TTV＜10um；
  • BOW＜15um；
  • WARP＜15um；
  • Front side: Epi-ready, Ra＜0.3nm ;
  • Backside: Ra＜1.2um;
  • Packing: Wafer case ;
