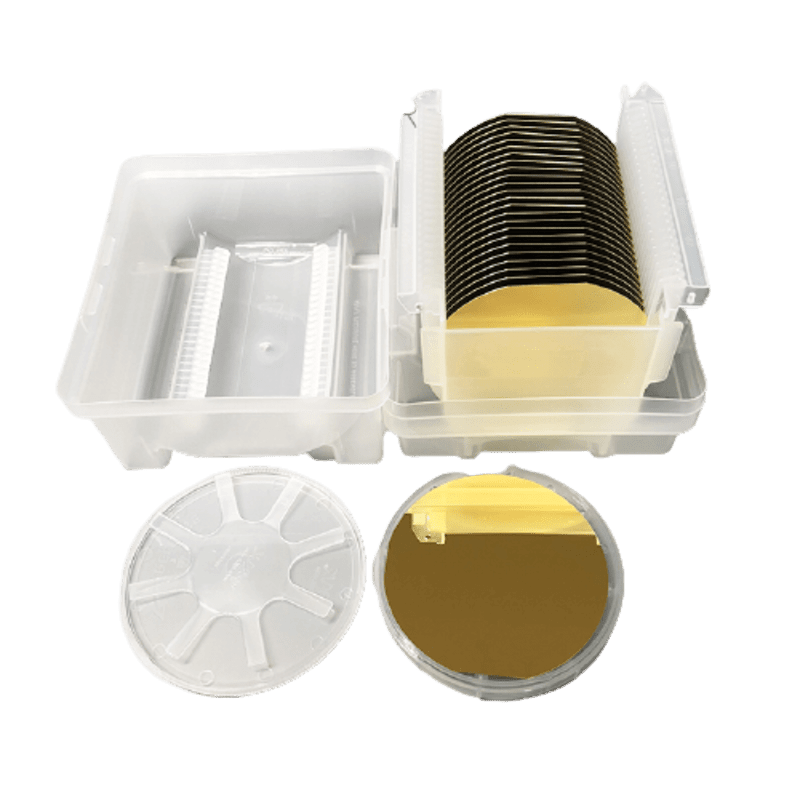

Silicon wafer 4inch 6inch Copper Layer Semiconductor Substrate in protective packaging with accessories.

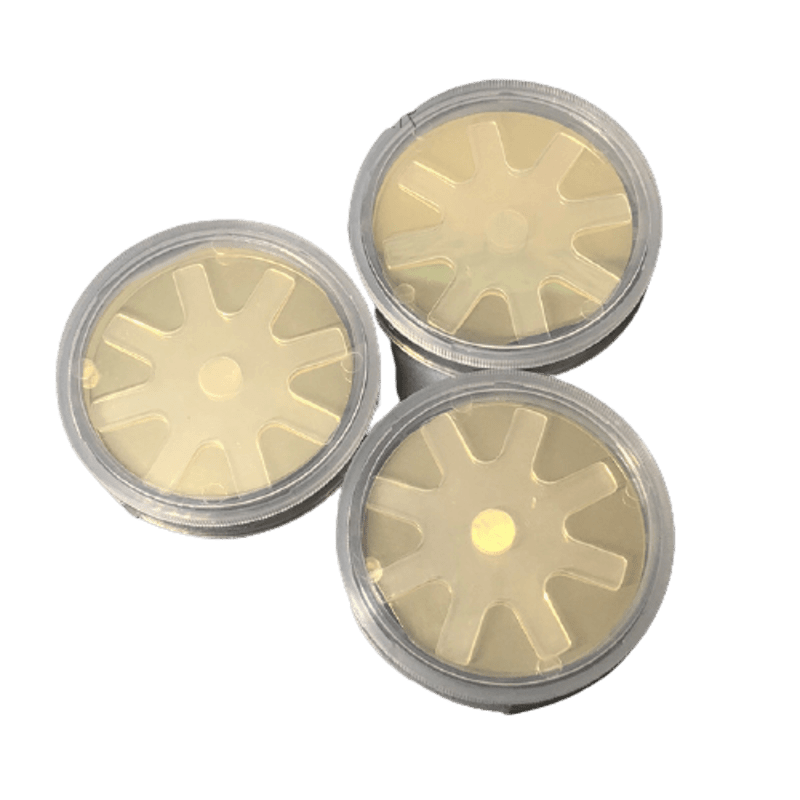

Silicon wafer 4inch 6inch Copper Layer Semiconductor Substrate in transparent containers.

SOKA TECHNOLOGY

Silicon wafer 4inch 6inch Copper Layer Semiconductor Substrate

$136.00
Specification:4inch P Type(100) Cu Layer 500nm
Quantity:1 Piece
Quantity:
♦️ High-quality silicon wafer for Research and Experiment.
♦️ Provide small quantities, special specifications products, and customized services.
♦️Global shipping, secure payment, large inventory.
♦️Minimum delivery time within 1 week. Shipped by FedEx, DHL,UPS, etc.
Silicon Wafer Specification:
  • Size: 4inch;
  • Method: CZ;
  • Type: P;
  • Dopant: B;
  • Orientation:100;
  • Resistivity: 0.001~0.005Ω;
  • Thickness: 525um±25;
  • TTV＜10um ;
  • Surface: polished;
  • Backside: etched;
  • Copper film: 500nm (Ti50nm;Cu 500nm);
  • Packing: silicon wafer case;
